VEVORSKU: D0102HQNF2U

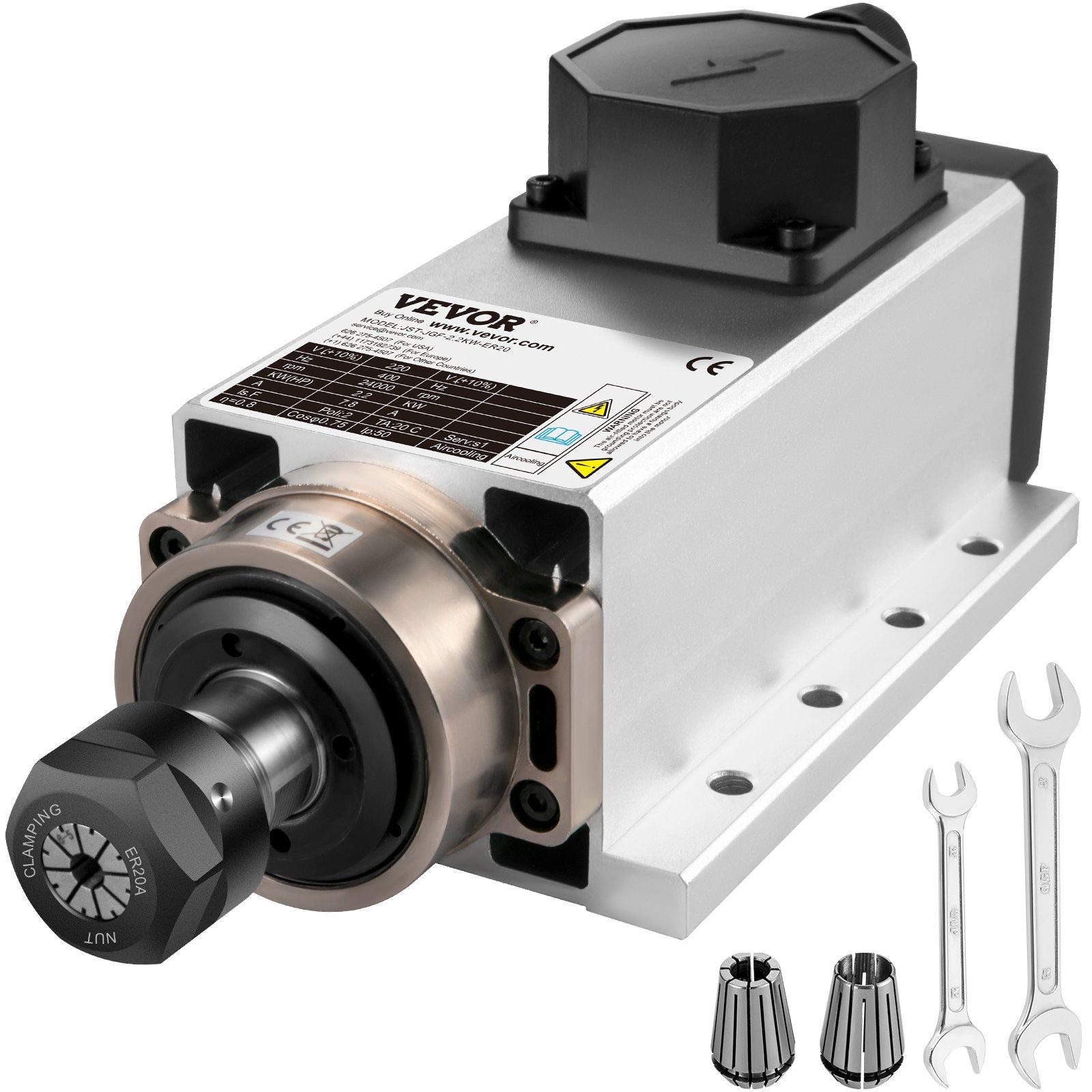

Air Cooled Spindle Motor 2.2KW CNC Spindle Motor 220V Square Air Cooled Spindle Motor ER20 Collet 24000 RPM CNC Spindle 5A Spindle Motor 400 Hz for CNC Router Engraving Milling Grind Machine
Shipping calculated at checkout.
Low Stock (7)
$197.99
Air Cooled Spindle Motor 2.2KW CNC Spindle Motor 220V Square Air Cooled Spindle Motor ER20 Collet 24000 RPM CNC Spindle 5A Spindle Motor 400 Hz for CNC Router Engraving Milling Grind Machine
$255.84
$197.99
/
Air Cooled Spindle Motor 2.2KW CNC Spindle Motor 220V Square Air Cooled Spindle Motor ER20 Collet 24000 RPM CNC Spindle 5A Spindle Motor 400 Hz for CNC Router Engraving Milling Grind Machine
Still deciding?
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
Related categories
High-Quality MaterialsMade with premium materials for long-lasting use.
Easy to UseSimple design for quick setup and convenience.
Versatile & Multi-PurposePerfect for home, office, or on-the-go.
Satisfaction GuaranteeLove it or return it for a full refund.
Highlights:
1.Technical Parameters: Spec: φ2.4 x 10.3 in (Diameter: 6.2 cm x Length: 26.1 cm); Power: 2.2KW; Voltage: 220V; Current: 7.8A; Collet Size: ER20; Bearings: 4 bearings; Frequency: 400 Hz; Speed: 24000 R/min; Runout off: less than 0.01 mm. Mainly used for engraving machine or used with frequency converter.
2.ER20 Standard Collet: The collet of the CNC router spindle is quenched with manganese steel, and the runout is less than 0.01 mm, which has high precision and is not easy to break the knife, increasing the stability of the working process. Dynamic balance technology can effectively reduce noise during use.
3.Powerful Bearing: The air spindle motor adopts imported bearings with high accuracy, precision, and durability. Significantly improve the hardness and anti-rust performance.
4.Low Noise & Heat Dissipation: The dynamic balance technology can effectively reduce the noise during use. The scientifically designed air cooling system has a better heat dissipation effect to ensure smooth operation.
5.Wide Application: The CNC spindle motor kit is mainly used for engraving machines or frequency converters. It uses air circulation to cool the heat and has a good heat dissipation effect.
Details:
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
1.Technical Parameters: Spec: φ2.4 x 10.3 in (Diameter: 6.2 cm x Length: 26.1 cm); Power: 2.2KW; Voltage: 220V; Current: 7.8A; Collet Size: ER20; Bearings: 4 bearings; Frequency: 400 Hz; Speed: 24000 R/min; Runout off: less than 0.01 mm. Mainly used for engraving machine or used with frequency converter.
2.ER20 Standard Collet: The collet of the CNC router spindle is quenched with manganese steel, and the runout is less than 0.01 mm, which has high precision and is not easy to break the knife, increasing the stability of the working process. Dynamic balance technology can effectively reduce noise during use.
3.Powerful Bearing: The air spindle motor adopts imported bearings with high accuracy, precision, and durability. Significantly improve the hardness and anti-rust performance.
4.Low Noise & Heat Dissipation: The dynamic balance technology can effectively reduce the noise during use. The scientifically designed air cooling system has a better heat dissipation effect to ensure smooth operation.
5.Wide Application: The CNC spindle motor kit is mainly used for engraving machines or frequency converters. It uses air circulation to cool the heat and has a good heat dissipation effect.
Details:
2.2KW Air Cooled Spindle Motor
ER20 Collet & Four Bearings & 24000 R/min
These spindle motors adopt imported bearings and high-quality materials, and their service life is three times that of ordinary spindle motors. Widely applicable to engraving machines for wood, stone, metal, and other materials.
- Technical Parameters
- ER20 Standard Collet
- Powerful Bearing
- Low Noise & Heat Dissipation
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Dynamic Balance Technology
Unlike other milling spindle motors, we use innovative and advanced dynamic balancing technology. The ER20 standard collet's advantages are excellent rigidity, full strength, unique drainage design, and high precision.
Four High-quality Bearings
The upgraded bearing has two significant advantages: superior durability and anti-rust performance. High speed (24000R/min) and strong power bring higher efficiency than before.
Noise Reduction and Air Cooling
Our CNC router spindle motor works with low noise and avoids auditory fatigue. It uses air circulation to cool the heat generated by the spindle at high speed and has a good heat dissipation effect.
Premium Material
The aluminum body ensures greater power and longer life; Unlike ordinary aluminum-clad wire, the oxygen-free copper coils can ensure high-quality processing and engraving performance.
Refined Internal Details
The CNC router spindle is a built-in wire box directly connected to the wire or VFD, effectively improving the stable and smooth operation. The upgraded wrench is provided for easy handling.
Wide Application
Air-cooled motors commonly applied materials such as wood, stone, mold & metal, etc. Suitable for machinery manufacturing, sheet metal processing, guardrails, factories, shipyards, home improvement, construction, and other fields.
Specifications
- Power: 2.2 KW
- Voltage: 220V
- Frequency: 400 Hz
- Speed: 24000 R/min
- Runout off: Less than 0.01 mm
- Collet Size (Dia.): 0.005" / 0.02" / 0.24" (0.125 mm / 0.5 mm / 6 mm)
- Connection of Spindle End: ER20 ø 0.125"-0.5" (3.175 mm-12.7 mm)
- Bearing Model: 7005 x 2, 7002 x 2
- Maximum Torque: 1.2NM
- Product Dimension: 2.4 x 10.3 in / 6.2 x 26.1 cm
- Weight: 13.2 lbs / 6 kg
Package Content
- 1 x Air Cooled Spindle Motor
- 2 x ER20 Collets
- 2 x Wrenches
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
2.2KW Air Cooled Spindle Motor
ER20 Collet & Four Bearings & 24000 R/min
These spindle motors adopt imported bearings and high-quality materials, and their service life is three times that of ordinary spindle motors. Widely applicable to engraving machines for wood, stone, metal, and other materials.
- Technical Parameters
- ER20 Standard Collet
- Powerful Bearing
- Low Noise & Heat Dissipation
Dynamic Balance Technology
Unlike other milling spindle motors, we use innovative and advanced dynamic balancing technology. The ER20 standard collet's advantages are excellent rigidity, full strength, unique drainage design, and high precision.
Four High-quality Bearings
The upgraded bearing has two significant advantages: superior durability and anti-rust performance. High speed (24000R/min) and strong power bring higher efficiency than before.
Noise Reduction and Air Cooling
Our CNC router spindle motor works with low noise and avoids auditory fatigue. It uses air circulation to cool the heat generated by the spindle at high speed and has a good heat dissipation effect.
Premium Material
The aluminum body ensures greater power and longer life; Unlike ordinary aluminum-clad wire, the oxygen-free copper coils can ensure high-quality processing and engraving performance.
Refined Internal Details
The CNC router spindle is a built-in wire box directly connected to the wire or VFD, effectively improving the stable and smooth operation. The upgraded wrench is provided for easy handling.
Wide Application
Air-cooled motors commonly applied materials such as wood, stone, mold & metal, etc. Suitable for machinery manufacturing, sheet metal processing, guardrails, factories, shipyards, home improvement, construction, and other fields.
Package Content
- 1 x Air Cooled Spindle Motor
- 2 x ER20 Collets
- 2 x Wrenches
Specifications
- Power: 2.2 KW
- Voltage: 220V
- Frequency: 400 Hz
- Speed: 24000 R/min
- Runout off: Less than 0.01 mm
- Collet Size (Dia.): 0.005" / 0.02" / 0.24" (0.125 mm / 0.5 mm / 6 mm)
- Connection of Spindle End: ER20 ø 0.125"-0.5" (3.175 mm-12.7 mm)
- Bearing Model: 7005 x 2, 7002 x 2
- Maximum Torque: 1.2NM
- Product Dimension: 2.4 x 10.3 in / 6.2 x 26.1 cm
- Weight: 13.2 lbs / 6 kg
